网关聚合 Knife4J 文档

原创 已于 2025-09-28 12:00:07 修改 · 粉丝可见 · 98 阅读 · 0 · 0 GEO检测 · 编辑
文章链接：https://blog.csdn.net/hacker_51/article/details/152074797

目录

[TOC]

搭建并配置网关

引入依赖

<!--网关-->
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-gateway</artifactId>
</dependency>
<!--nacos discovery-->
<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>
<!--负载均衡-->
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-loadbalancer</artifactId>
</dependency>

yml 配置

server:
  port: 8080

spring:
  application:
    name: gateway
  cloud:
    nacos:
      server-addr: localhost:8848
      username: nacos
      password: nacos
    gateway:
      routes:
        - id: News # 路由规则id，自定义，唯一
          uri: lb://NewsModule # 路由的目标服务，lb代表负载均衡，会从注册中心拉取服务列表
          predicates: # 路由断言，判断当前请求是否符合当前规则，符合则路由到目标服务
            - Path=/news/** # 这里是以请求路径作为判断规则
        - id: User # 路由规则id，自定义，唯一
          uri: lb://UserModule # 路由的目标服务，lb代表负载均衡，会从注册中心拉取服务列表
          predicates: # 路由断言，判断当前请求是否符合当前规则，符合则路由到目标服务
            - Path=/user/** # 这里是以请求路径作为判断规则

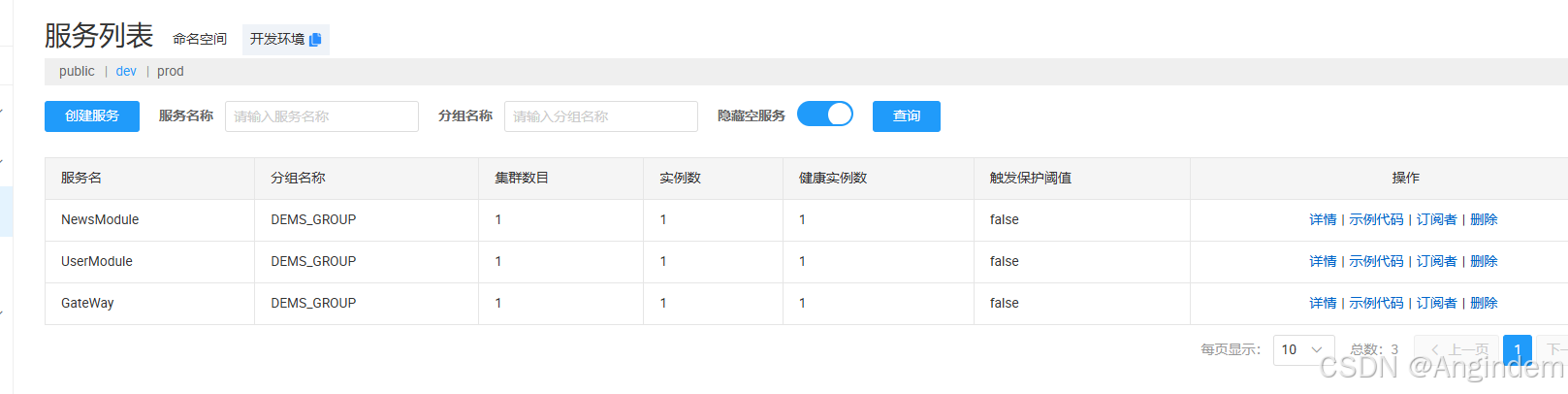

启动网关

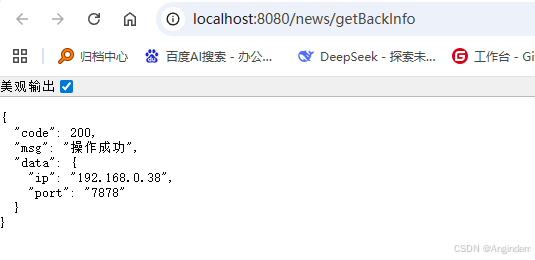

访问测试： http://localhost:8080/news/getBackInfo

编写Swagger配置资源

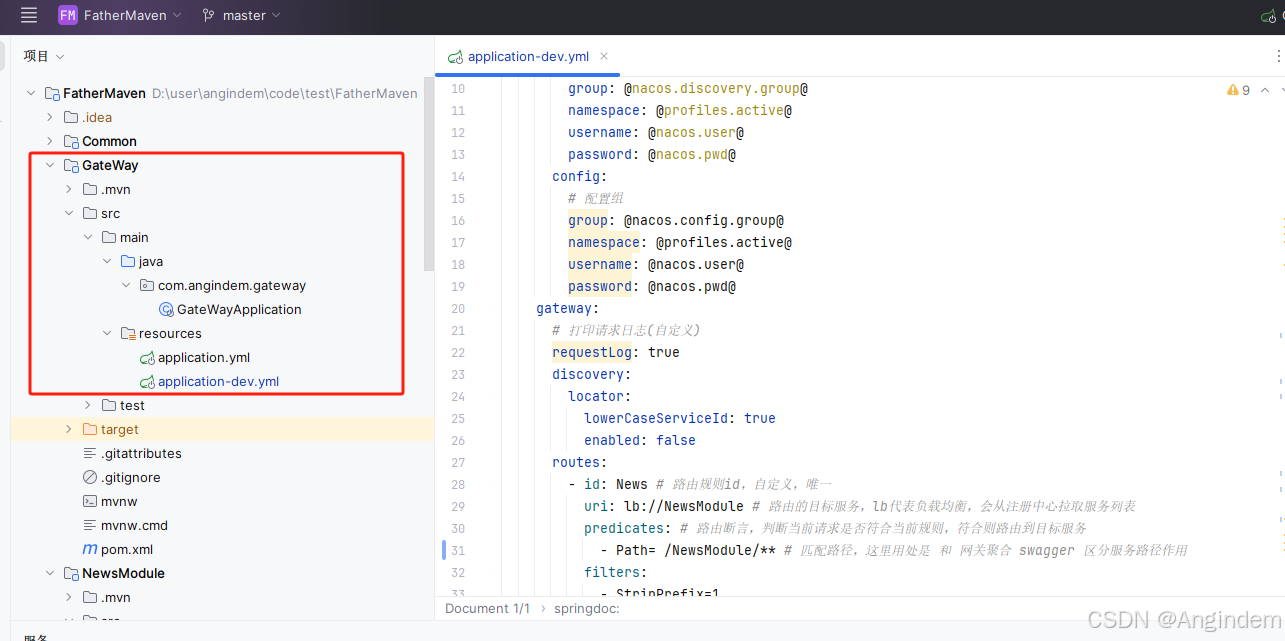

创建 网关模块

在网关服务引入 Knife4j 依赖

<!-- knife4j Aggregate documents -->
<dependency>
   <groupId>com.github.xiaoymin</groupId>
   <artifactId>knife4j-gateway-spring-boot-starter</artifactId>
   <version>4.4.0</version>
</dependency>

注意： 这里 Gateway 服务的 Knife4j 依赖与先前 user 服务的 Knife4j 不是同一个依赖

为网关服务添加配置项

在 application.yml 或 application.properties 文件中添加以下配置(加入 /api/**)：

server:
  port: 8080
spring:
  cloud:
    nacos:
      # nacos 服务地址
      server-addr: @nacos.server@
      discovery:
        # 注册组
        group: @nacos.discovery.group@
        namespace: @profiles.active@
        username: @nacos.user@
        password: @nacos.pwd@
      config:
        # 配置组
        group: @nacos.config.group@
        namespace: @profiles.active@
        username: @nacos.user@
        password: @nacos.pwd@
    gateway:
      # 打印请求日志(自定义)
      requestLog: true
      discovery:
        locator:
          lowerCaseServiceId: true
          enabled: false
      routes:
        - id: News # 路由规则id，自定义，唯一
          uri: lb://NewsModule # 路由的目标服务，lb代表负载均衡，会从注册中心拉取服务列表
          predicates: # 路由断言，判断当前请求是否符合当前规则，符合则路由到目标服务
            - Path= /NewsModule/** # 匹配路径，这里用处是 和 网关聚合 swagger 区分服务路径作用
          filters:
            - StripPrefix=1
        - id: User # 路由规则id，自定义，唯一
          uri: lb://UserModule # 路由的目标服务，lb代表负载均衡，会从注册中心拉取服务列表
          predicates: # 路由断言，判断当前请求是否符合当前规则，符合则路由到目标服务
            - Path= /UserModule/**   # 匹配路径，这里用处是 和 网关聚合 swagger 区分服务路径作用
          filters:
            - StripPrefix=1   # 去掉swagger需要区分的多余前缀，方便我们请求路径

# Knife4j 配置
knife4j:
  gateway:
    enabled: true
    strategy: discover
    discover:
      enabled: true
      version: openapi3
      excluded-services:  # 排除Knife4j网关服务的模块
        - GateWay
        -
# springdoc-openapi项目配置
springdoc:
  api-docs:
    path: /v3/api-docs  # 接口文档路径 应该与 其它工程模块的接口文档路径一致
  swagger-ui:
    path: /swagger-ui.html
    tags-sorter: alpha
    operations-sorter: alpha

其它工程模块的yml配置文件

# springdoc-openapi项目配置
springdoc:
  swagger-ui:
    path: /swagger-ui.html
    tags-sorter: alpha
    operations-sorter: alpha
  api-docs:
    path: /v3/api-docs
  group-configs:
    - group: 'user-server'
      paths-to-match: '/**'
      packages-to-scan: com.angindem.controller
# knife4j的增强配置，不需要增强可以不配
knife4j:
  enable: true
  setting:
    language: zh_cn

启动网关服务

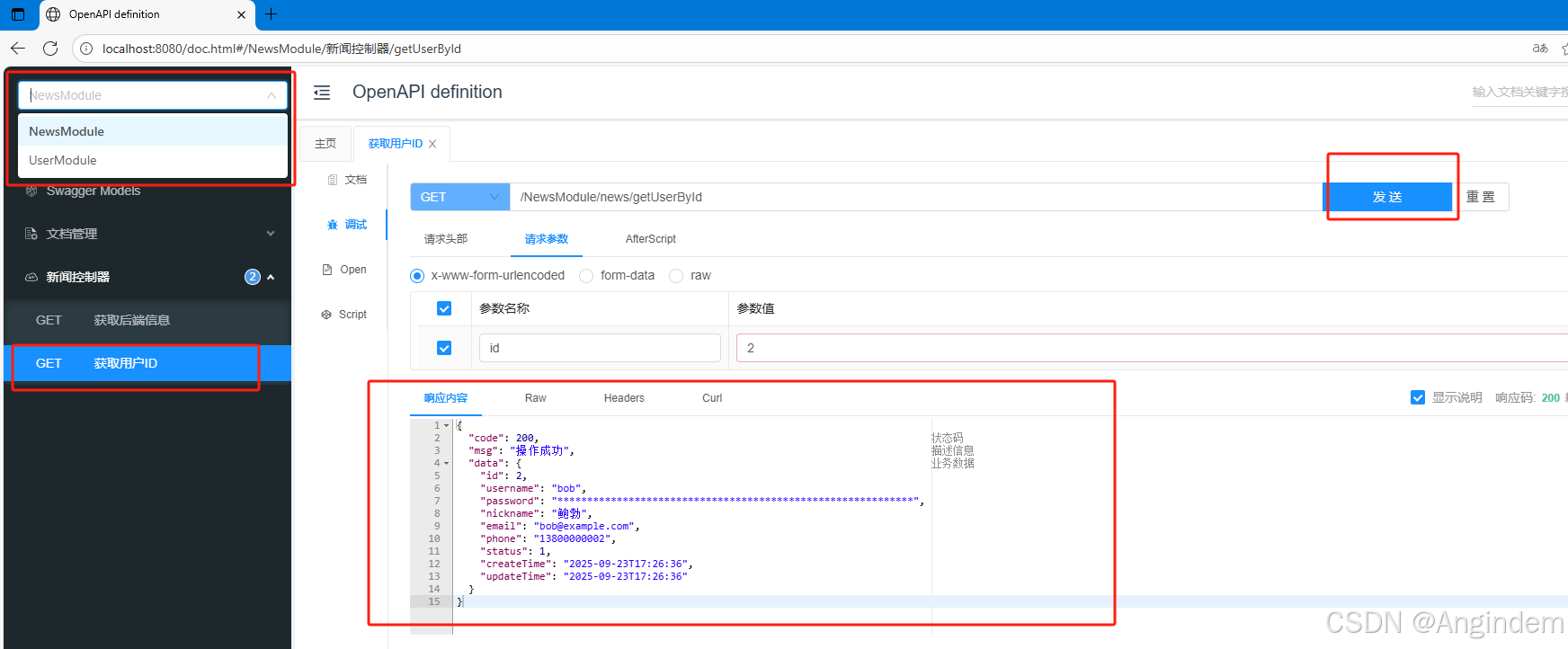

成功聚合swagger。

注意： 聚合的 swagger 的请求路径会有多余的模块区分前缀，我们实际请求路径需要去掉多余前缀，所以我们配置gateway网关的时候，需要用到

filters:
- StripPrefix=1

去除swagger区分路径前缀。

统一swagger布局模块，yml配置

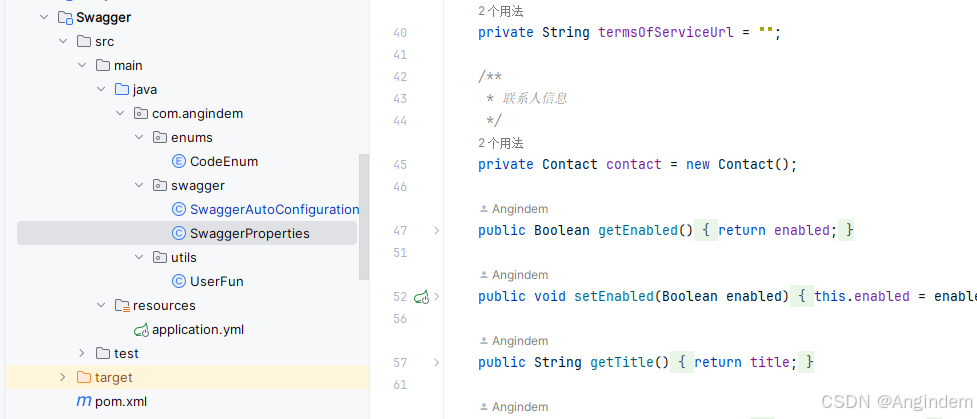

新建Swagger模块

编写yml配置参数


/**
 * @author Angindem
 * @description This is ${NAME} Class
 * @since 2025/9/28 - 11:51
 */
@Component
@ConfigurationProperties("swagger")
public class SwaggerProperties
{
    /**
     * 是否开启swagger
     */
    private Boolean enabled;

    /**
     * 标题
     **/
    private String title = "";

    /**
     * 描述
     **/
    private String description = "";

    /**
     * 版本
     **/
    private String version = "";

    /**
     * 许可证
     **/
    private License license = new License();

    /**
     * 服务条款URL
     **/
    private String termsOfServiceUrl = "";

    /**
     * 联系人信息
     */
    private Contact contact = new Contact();

    public Boolean getEnabled()
    {
        return enabled;
    }

    public void setEnabled(Boolean enabled)
    {
        this.enabled = enabled;
    }

    public String getTitle()
    {
        return title;
    }

    public void setTitle(String title)
    {
        this.title = title;
    }

    public String getDescription()
    {
        return description;
    }

    public void setDescription(String description)
    {
        this.description = description;
    }

    public String getVersion()
    {
        return version;
    }

    public void setVersion(String version)
    {
        this.version = version;
    }

    public String getTermsOfServiceUrl()
    {
        return termsOfServiceUrl;
    }

    public void setTermsOfServiceUrl(String termsOfServiceUrl)
    {
        this.termsOfServiceUrl = termsOfServiceUrl;
    }

    public Contact getContact()
    {
        return contact;
    }

    public void setContact(Contact contact)
    {
        this.contact = contact;
    }

    public License getLicense() {
        return license;
    }

    public void setLicense(License license) {
        this.license = license;
    }
}

编写swagger配置信息


//@AutoConfiguration(before = SpringDocConfiguration.class)
@Configuration
@EnableKnife4j
@EnableConfigurationProperties(SwaggerProperties.class)
@ConditionalOnProperty(name = "swagger.enabled", matchIfMissing = true)
public class SwaggerAutoConfiguration {

    @Bean
    @ConditionalOnMissingBean
    public SwaggerProperties swaggerProperties() {
        return new SwaggerProperties();
    }

    @Bean
    public GroupedOpenApi api() {
        return GroupedOpenApi.builder()
                .group("default")
                .pathsToMatch("/**")
                .addOpenApiCustomizer(this.openApiCustomizer())  // 修正方法名拼写
                .build();
    }

    @Bean
    @ConditionalOnMissingBean(OpenAPI.class)
    public OpenAPI openApi(SwaggerProperties swaggerProperties) {
        OpenAPI openApi = new OpenAPI();
        boolean devDebugFlag = UserFun.checkExistLoadBalancer();
        String title = swaggerProperties.getTitle();
        if(devDebugFlag){
            String address = UserFun.getServerIp();
            title = title + " （开发/测试环境，服务所在IP："+address+"）";
        }
        Info info = new Info();
        info.setDescription(swaggerProperties.getDescription());
        info.setContact(swaggerProperties.getContact());
        info.setLicense(swaggerProperties.getLicense());
        info.setTitle(title);
        info.setVersion(swaggerProperties.getVersion());
        info.setTermsOfService(swaggerProperties.getTermsOfServiceUrl());
        // 文档基本信息
        openApi.info(info);
        return openApi;
    }

    /**
     * 对已经生成好的 OpenApi 进行自定义操作
     */
    @Bean
    public OpenApiCustomizer openApiCustomizer() {  // 方法名也要保持一致
        return openApi -> {
            //添加全局响应状态码
            openApi.getPaths().values().forEach(pathItem -> pathItem.readOperations().forEach(operation -> {
                Arrays.stream(CodeEnum.values()).forEach(codeEnum -> {
                    if(!codeEnum.equals(CodeEnum.success)){
                        operation.getResponses().addApiResponse(String.valueOf(codeEnum.getCode()), new ApiResponse().description(codeEnum.getMsg()));
                    }
                });
            }));
        };
    }
}

配置所需的参数

全局统一HTTP响应码


/**
 * @author Angindem
 * @description 全局统一HTTP响应码
 * @since 2025/9/28 - 11:53
 */
public enum CodeEnum {

    success(200,"操作成功"),
    logicCheck(202,"逻辑检查不通过"),
    paramError(400,"参数错误"),
    authentication(401,"未登录（需要身份验证）"),
    noPermission(403,"没有权限，访问受限"),
    sms(418,"自定义状态码：用于短信发送"),
    sysError(500,"系统错误"),
    fail(501,"操作失败"),
    repeat(502,"重复提交"),
    busy(503,"系统繁忙，请稍后再试")
    ;

    private int code;
    private String msg;

    CodeEnum(int code, String msg) {
        this.code = code;
        this.msg = msg;
    }
    public int getCode() {
        return code;
    }
    public String getMsg() {
        return msg;
    }
}

网络服务工具类


/**
 * @author Angindem
 * @description 此类用于存放无数据库操作的通用方法
 * @since 2025/9/28 - 11:54
 */
public class UserFun {

	//中文(大陆)计数单位
	static final String[] unitCN = new String[]{"京","","","","万兆","","","","兆","","","","万亿","","","","亿","","","","万","","","",""};

	public String ggg(Method method){
        return method.getClass().getName() + "." + method.getName();
    }
	/**
	 * 新建Cookie对象(无加密，根路径)
	 * @最后修改人	方安伦
	 * @修改时间	2014-12-12 下午3:12:38
	 * @param name
	 * @param value
	 * @return
	 */
	public static Cookie newCookie(String name, String value){
		Cookie randomCookie = new Cookie();
		randomCookie.setPath("/");
		return randomCookie;
	}

	public static int compareDatesDay(Date date1,Date date2){
		int days = 0;
		try {
			days = (int) ((date2.getTime() - date1.getTime()) / (1000*3600*24));
		} catch (Exception e) {
			e.printStackTrace();
		}
		return days;
	}

	/**
	 * 获取一定位数的随机字符串(A-z0-9)
	 * @最后修改人	方安伦
	 * @修改时间	2014-12-22 下午3:58:20
	 * @param len
	 * @return
	 */
	public static String getRandomString(int len){
		//定义可选择的字符
		char[] chars = {'0','1','2','3','4','5','6','7','8','9','a','b','c','d','e','f','g','h',
			'i','j','k','l','m','n','o','p','q','r','s','t','u','v','w','x','y','z','A','B','C','D','E','F','G','H',
			'I','J','K','L','M','N','O','P','Q','R','S','T','U','V','W','X','Y','Z'};
		Random random = new Random();
		StringBuffer buffer = new StringBuffer();
		for(int i=0;i<len;i++){
			buffer.append(chars[random.nextInt(chars.length)]);
		}
		return buffer.toString();
	}

	/**
	 * 获取通过代理的用户的真实IP地址
	 * @param request
	 * @return
	 */
	public static String getIpAddr(HttpServletRequest request) {
	    String ip = request.getHeader("x-forwarded-for");
	    if(ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
	        ip = request.getHeader("Proxy-Client-IP");
	    }
	    if(ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
	        ip = request.getHeader("WL-Proxy-Client-IP");
	    }
	    if(ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
	        ip = request.getRemoteAddr();
	    }
	    return ip;
	}

	/**
	* 把一个double数值转换为带有中文单位的字符串
	* @author 雷日初
	* @date 2020年1月17日 上午09:56:52
	* @param num 待转换的double数值
	* @param digit 添加计量单位后要保留的最长小数位数（注：小于一万的数值，原小数部分将全部保留）
	* 如：10000.1234转换得“1万”，9999.1234转换得“9999.1234”
	* @return 带中文“兆/亿/万”计量单位的字符串,在不超过指定保留的最长小数位数的情况下，再截去结尾连续为0的小数位
	*/
	public static String formartNumByCnUnit(double num, int digit){
		if(digit<0){
			digit = 0;
		}
		String numberStr = (new BigDecimal(String.valueOf(num))).toPlainString();
		String ends = "";
		char[] splits = null;
		if(numberStr.indexOf(".")>-1){
			splits = (numberStr.substring(0,numberStr.indexOf("."))).toCharArray();
			char[] ends0 = (numberStr.substring(numberStr.indexOf(".")+1, numberStr.length())).toCharArray();
			for(int i=ends0.length-1;i>=0;i--){
				if(ends0[i] != '0'){
					for(int j=0;j<=i;j++){
						ends += ends0[j];
					}
					break;
				}
			}
		}else{
			splits = numberStr.toCharArray();
		}
		StringBuffer retStr = new StringBuffer();
		String unit = "";
		for(int i=0;i<splits.length;i++){
			if(splits.length>4 && (unitCN.length-splits.length+i)%4==0 && unit.length()==0){
				unit = unitCN[unitCN.length-splits.length+i];
				retStr.append(splits[i]);
				String others = "";
				for(int j=i+1;j<splits.length && j-i<=digit+1;j++){
					others += splits[j];
				}
				if(others.length()>0){
					int oth = Integer.parseInt(others);
					if(oth>0){
						if(others.length()>digit){
							double tmps = (Math.round(oth*Math.pow(10,-1)))*Math.pow(10,-digit);
							others = ((tmps + "").split("\\.")).length>1?((tmps + "").split("\\."))[1]:"";
							others = others.length()>=digit ? others.substring(0, digit) : others;
							if(tmps >= 1){
								int tmpInt = Integer.parseInt(retStr.toString()) + 1;
								if(tmpInt==10000){
									retStr = new StringBuffer("1");
									unit = unitCN[unitCN.length-splits.length+i-4];
								}else{
									retStr = new StringBuffer(tmpInt+"");
								}
							}
						}
						while(others.endsWith("0")){
							others = others.substring(0, others.length()-1);
						}
						others = others.length() == 0 ? "" : "." + others;
					}else{
						others = "";
					}
				}
				retStr.append(others + unit);
				break;
			}else{
				retStr.append(splits[i]);
			}
		}
		if(unit.length()==0 && ends.length()>0){
			retStr.append("." + ends);
		}
		return retStr.toString();
	}

	/**
	* @description 从listA里删除listB里有的数据
	* @author 方安伦
	* @date 2021/5/27 10:32
	* @param listA
	* @param listB
	* @return List<String>
	 **/
	public static List<String> listrem(List<String> listA, List<String> listB){
		for (Iterator<String> itA = listA.iterator(); itA.hasNext();){
			String temp = itA.next();
			// itA.next() 只能在外层循环里面调用1次
			for (int i = 0; i < listB.size(); i++){
				if (temp.equals(listB.get(i))){
					itA.remove();
					break;
				}
			}
		}
		return listA;
	}

	public static int getRandomInt(int min,int max){
		return (int)(min+Math.random()*(max-min+1));
	}

	public static String getUUID32(){
		String uuid = UUID.randomUUID().toString(); //转化为String对象
		uuid = uuid.replace("-", "");//因为UUID本身为32位只是生成时多了“-”，所以将它们去除就可
		return uuid;
	}

	public static String getStringNoNullTrim(String str) {
		return str != null && !"null".equals(str.trim()) ? str.trim() : "";
	}

	/**
	* @description 根据异常对象，取得异常堆栈信息
	* @author 方安伦
	* @date 2021/11/22 17:14
	* @param e
	* @return String
	 **/
	public static String getStackTraceForHtml(Throwable e, int linenum) {
		String returnStr = "";
		int lineCount = 0;
		int moreInt = 0;
		int causeLength = 0;
		StringBuffer buf = new StringBuffer();
		StackTraceElement[] elements = e.getStackTrace();
		Throwable causeThrowable = e.getCause();
		StackTraceElement[] elementsCause = null;
		if (causeThrowable != null) {
			elementsCause = causeThrowable.getStackTrace();
			causeLength = elementsCause.length;
		}

		if (lineCount >= linenum && linenum != -1) {
			if (moreInt == 0) {
				moreInt = elements.length + causeLength;
				buf.append("<br>&nbsp;&nbsp;&nbsp;&nbsp;... " + moreInt + " more");
			}
		} else {
			buf.append(e.getClass().getName() + ":" + getStringNoNullTrim(e.getMessage()));
			++lineCount;
		}

		int i;
		String opsition;
		for(i = 0; i < elements.length; ++i) {
			if (lineCount >= linenum && linenum != -1) {
				if (moreInt == 0) {
					moreInt = elements.length - i + causeLength;
					buf.append("<br>&nbsp;&nbsp;&nbsp;&nbsp;... " + moreInt + " more");
				}
			} else {
				opsition = "Unknown Source";
				if (elements[i].getFileName() != null) {
					opsition = elements[i].getFileName() + ":" + elements[i].getLineNumber();
				}

				buf.append("<br>&nbsp;&nbsp;&nbsp;&nbsp;at " + elements[i].getClassName() + "." + elements[i].getMethodName() + "(" + opsition + ")");
				++lineCount;
			}
		}

		if (causeThrowable != null) {
			if (lineCount >= linenum && linenum != -1) {
				if (moreInt == 0) {
					moreInt = causeLength;
					buf.append("<br>&nbsp;&nbsp;&nbsp;&nbsp;... " + causeLength + " more");
				}
			} else {
				buf.append("<br>Caused by:" + causeThrowable.getClass().getName() + ":" + getStringNoNullTrim(causeThrowable.getMessage()) + "<br>");
				lineCount += 2;
			}
		}

		if (causeThrowable != null) {
			for(i = 0; i < causeLength; ++i) {
				if (lineCount >= linenum && linenum != -1) {
					if (moreInt == 0) {
						moreInt = causeLength - i;
						buf.append("<br>&nbsp;&nbsp;&nbsp;&nbsp;... " + moreInt + " more");
					}
				} else {
					opsition = "Unknown Source";
					if (elementsCause[i].getFileName() != null) {
						opsition = elementsCause[i].getFileName() + ":" + elementsCause[i].getLineNumber();
					}

					buf.append("<br>&nbsp;&nbsp;&nbsp;&nbsp;at " + elementsCause[i].getClassName() + "." + elementsCause[i].getMethodName() + "(" + opsition + ")");
					++lineCount;
				}
			}
		}

		returnStr = buf.toString();
		returnStr = returnStr.trim();
		return returnStr;
	}

	/**
	* @description 根据属性，调用get方法
	* @author 方安伦
	* @date 2021/12/10 14:30
	 **/
	public static Object doGetMethod(Object ob , String name)throws Exception{
		Method[] m = ob.getClass().getMethods();
		for(int i = 0;i < m.length;i++){
			if(("get"+name).toLowerCase().equals(m[i].getName().toLowerCase())){
				return m[i].invoke(ob);
			}
		}
		return null;
	}

    /**
     * 通过判断是否存在指定类，识别当前运行环境是否为本地开发调试环境
     * @return boolean
     */
	public static boolean checkExistLoadBalancer(){
        try {
            Class.forName("com.detech.dems.common.loadbalance.core.CustomSpringCloudLoadBalancer");
            //此时没有报异常，表明类CustomSpringCloudLoadBalancer是存在的，说明此时是本地开发调试环境
            return true;
        } catch (ClassNotFoundException e) {
            //异常则说明类CustomSpringCloudLoadBalancer不存在，说明此时不是本地开发调试环境
        }
        return false;
    }

    /**
     * 通过判断是否存在指定类，识别当前服务是否为网关服务
     * @return boolean
     */
	public static boolean checkExistGatewayApplication(){
        try {
            Class.forName("com.detech.dems.gateway.GatewayApplication");
            //此时没有报异常，表明类GatewayApplication是存在的，说明此时是网关服务
            return true;
        } catch (ClassNotFoundException e) {
            //异常则说明类GatewayApplication不存在，说明此时不是网关服务
        }
        return false;
    }

    /**
    * 字符串转布尔值
    */
    public static final boolean strToBoolean(String flag) {
        if("0".equals(flag)){
            return false;
        }
        if("1".equals(flag)){
            return true;
        }
        if("Y".equals(flag)){
            return true;
        }
        if("N".equals(flag)){
            return false;
        }
        return StringUtils.isEmpty(flag);
    }

    /**
     * 获取本机IP
     * @return
     */
    public static String getLocalIp() throws UnknownHostException {
        String host = "127.0.0.1";
        try {
            // 如需自定义ip可修改此处
            String address = InetAddress.getLocalHost().getHostAddress();
            if (address != null) {
                host = address;
            }
        } catch (UnknownHostException e) {
            e.printStackTrace();
        }
        return host;
    }

    public static String getServerIp() {
        String ip = "127.0.0.1";
        try{
            Enumeration<NetworkInterface> interfaces = NetworkInterface.getNetworkInterfaces();
            while (interfaces.hasMoreElements()) {
                NetworkInterface ni = interfaces.nextElement();
                String name = ni.getName();
                // 跳过Docker虚拟网桥及虚拟接口
                if (name.toLowerCase().startsWith("br-") ||
                    name.toLowerCase().startsWith("docker") ||
                    name.toLowerCase().startsWith("veth")) {
                    continue;
                }
                Enumeration<InetAddress> addresses = ni.getInetAddresses();
                while (addresses.hasMoreElements()) {
                    InetAddress addr = addresses.nextElement();
                    if (!addr.isLoopbackAddress() && addr instanceof Inet4Address) {
                        return addr.getHostAddress();
                    }
                }
            }
        }catch (SocketException e){
            e.printStackTrace();
        }
        return ip;
    }
}

其它模块pom引用Swagger

yml配置

swagger:
  # 是否开启swagger
  enabled: true
  # 标题
  title: '标题：dems微服务框架_xxx接口文档'
  # 描述
  description: '描述：微服务框架, 具体包括XXX,XXX模块...'
  # 版本
  version: '1.0.0'
  # 作者信息
  contact:
    name: Angindem
    email: 123456789@qq.com
    url: https://blog.csdn.net/hacker_51?type=blog
